Fabtech 11-19 GM C/K2500HD/3500HD 4in Ultimate System w/DL Shocks ^Sale

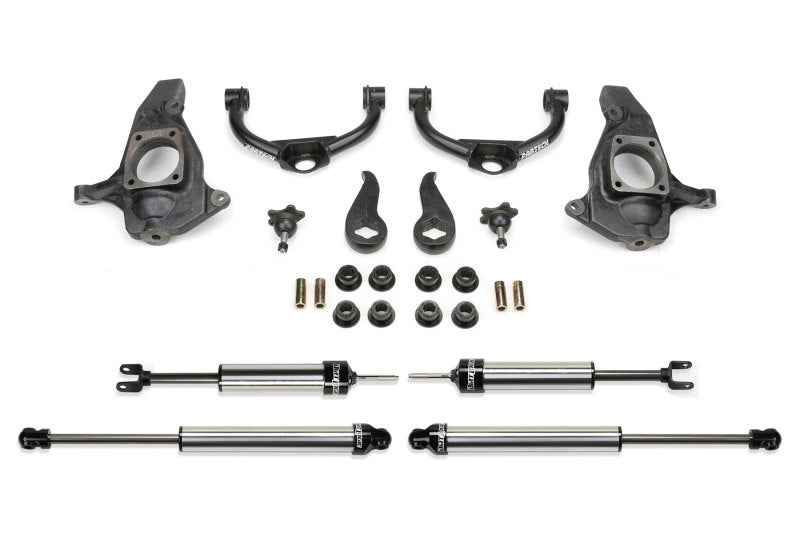

Our 4 Ultimate System provides less lift than our 6 RTS(TM) system but still allows use of 33 or 35 tall tires with cutting for street and offroad use. We have developed this system utilizing replacement upper control arms constructed of 1.50 OD .120 thick wall DOM tubing that attaches to heavy duty Fabtech ductile iron steering knuckles. The factory torsion bars remain in the stock position and use new forged adjusting keys to provide the proper amount of lift. There is no loss of ground clearance with this system as the stock lower control arms, torsion bars and front differential do not need to be relocated. This 4 Ultimate System will level the stance of the vehicle compared to the factory nose down rake with no change to the rear suspension. For those customers that require a factory nose down appearance an optional 1 rear block kit is available (2500HD Part # FTS21110) (3500HD Part # FTS21111).
4in. ULTIMATE SYS W/DLSS SHKS 2011-18 GM C/K2500HD/3500HD
TIRE SIZE - 33/12.50R18 WHEEL - 18X9 W/5 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 33/12.50R20 WHEEL - 20X9 W/5 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 35/13.50R18 WHEEL - 18X9 W/5 3/4" BS W/FENDERWELL CUTTING; TIRE SIZE - 35/13.50R20 WHEEL - 20X9 W/5 3/4" BS W/FENDERWELL CUTTING; 17. DOES NOT FIT STANDARD CAB.; 114. WILL NOT ALLOW USE OF 17? WHEELS.; 124. REQUIRES CUTTING OF FENDERWELL SHEETMETAL FOR USE WITH 35? TIRES
